Description

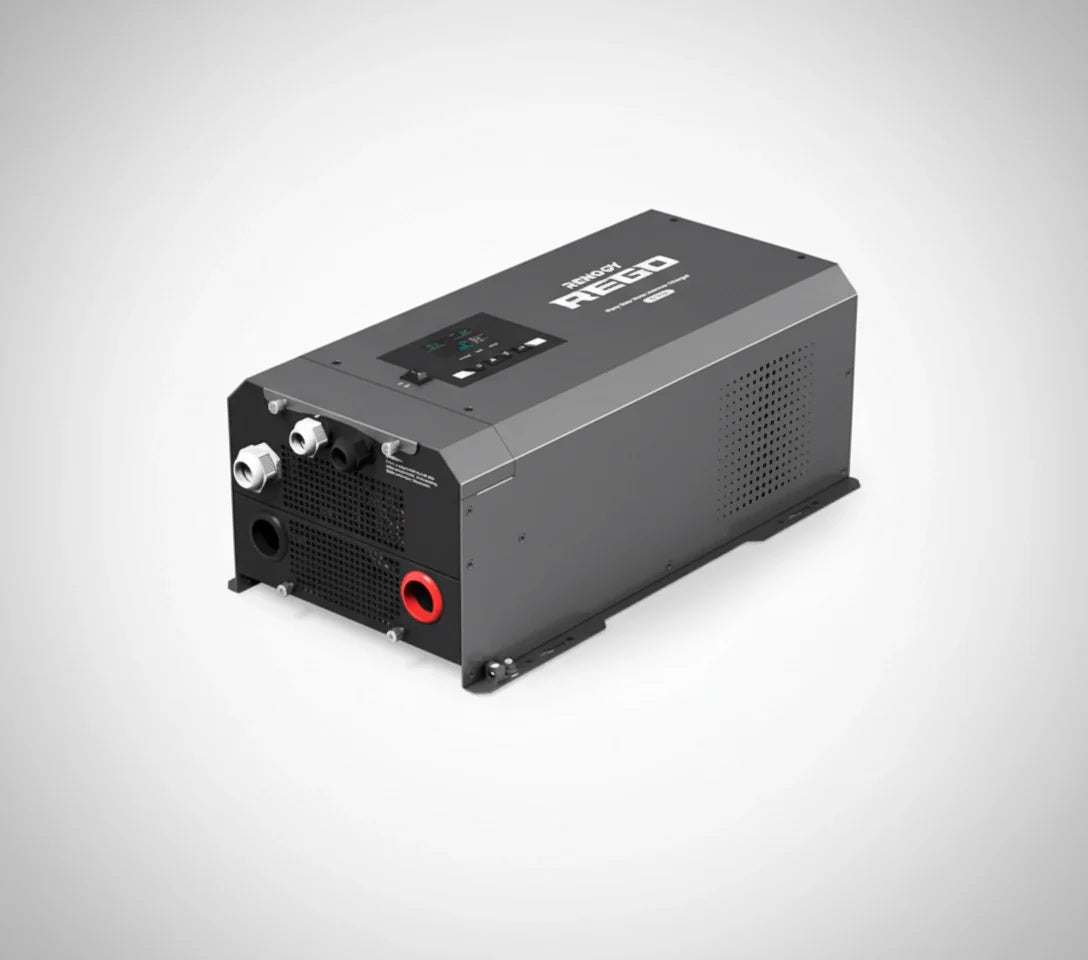

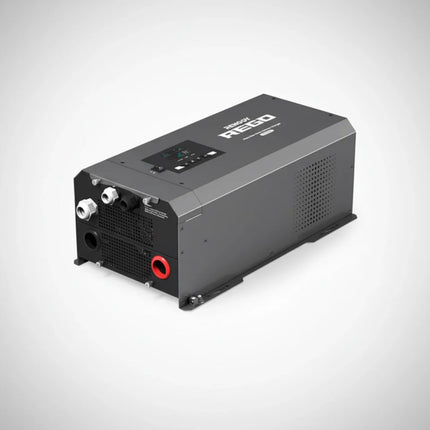

Renogy REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display
The Renogy REGO 12V 3000W Pure Sine Wave Inverter Charger is a powerful, all-in-one solution designed to deliver reliable and efficient power for off-grid, RV, marine, and backup power applications.
Combining a high-performance inverter, multi-stage battery charger, and automatic transfer switch, this compact unit ensures seamless power conversion and battery management. With advanced features like built-in Bluetooth, a bright LCD display, and robust safety protections, the REGO inverter charger is engineered to keep your heavy-duty appliances running smoothly while optimizing battery lifespan.
Key Features
Powerful Pure Sine Wave Output
Delivers 3000W continuous AC power with a peak surge capacity of 9000W, ensuring clean, stable electricity for sensitive electronics like laptops, TVs, and medical equipment. The pure sine wave output minimizes interference and extends appliance lifespan.
4-Stage Battery Charging
Utilizes Bulk, Boost, Float, and Equalization charging modes to efficiently charge 12V batteries to 100%, supporting Gel, AGM, Sealed Lead Acid (SLA), Flooded (FLD), Calcium (CAL), Lithium (Li), and custom user modes. Includes lithium battery reactivation and self-heating support for optimal performance.
Seamless Power Switching
Features a built-in 30A automatic transfer switch (ATS) with a 10ms transfer time, enabling smooth transitions between shore/grid power and battery power to prevent interruptions for critical devices.
Built-in Bluetooth Connectivity
Monitor and control the inverter charger remotely via the Renogy DC Home App. Pair with the Renogy ONE M1 or Core (sold separately) for real-time energy data and system management on your smartphone.
User-Friendly LCD Display
The bright LCD panel provides real-time insights into input/output voltage, load status, battery levels, and error codes. Four function keys allow easy navigation and configuration of input voltage range and charging current (5-75A, adjustable in 5A intervals).
Comprehensive Protection
Equipped with safeguards against overload, overcharge, over-discharge, short circuits, and over-temperature, ensuring maximum safety and efficiency. Certified to FCC Class A Part 15, UL458 (including Marine supplement), and CSA-C22.2 No 107.1 standards.
Versatile Applications
Ideal for off-grid cabins, RV camping, marine vessels, and backup power systems. Compatible with 120V AC input (90-138V range) from utility or generator sources, with a configurable 50/60Hz output.
Easy Installation
Designed for quick and secure setup with accessible panels and included accessories, including a battery temperature sensor and wired remote control. Note: The temperature sensor is not compatible with lithium batteries.
Specifications
-
Continuous Power: 3000W
-
Surge Power: 9000W
-
AC Output Voltage: 100-120VAC (configurable, 5V intervals)
-
Output Frequency: 50/60 Hz ± 0.1% (configurable)
-
Output Waveform: Pure Sine Wave
-
Efficiency: >90%
-
No Load Current Draw: Normal (<30W), Power Saving (<15W)
-
Charger Output Current: 5-75A (configurable, 5A intervals)
-
Nominal Input Voltage: 120VAC
-
Input Voltage Range: 90-138VAC
-
Input Frequency Range: 40-70Hz
-
Transfer Time: ~10ms
-
Transfer Rating: 30A (continuous), 40A (maximum)
-
Battery Types: Gel, AGM, SLA, FLD, CAL, Li, User
-
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
-
Storage Temperature: -22°F to 158°F (-30°C to 70°C)
-
Dimensions: 20.1 x 11.2 x 7.6 in (510 x 285 x 193 mm)
-
Weight: 63.5 lbs (28.8 kg)
-
Warranty: 2 years (inverter), 1 year (accessories)
Why Choose the Renogy REGO 3000W Inverter Charger?
The Renogy REGO 12V 3000W Inverter Charger is the ultimate power solution for off-grid living, combining robust performance, smart technology, and user-friendly design.
Its high-efficiency charging, seamless power switching, and remote monitoring capabilities make it perfect for powering heavy-duty appliances while maintaining battery health. Whether you're exploring in an RV, sailing on a yacht, or building an off-grid cabin, the REGO ensures uninterrupted power with unmatched reliability and convenience.
Package Includes
-
1 x Renogy REGO 12V 3000W Pure Sine Wave Inverter Charger
-
1 x Battery Temperature Sensor
-
1 x Inverter Wired Remote Control
-
1 x User Manual
Power your off-grid adventures with confidence using the Renogy REGO 12V 3000W Pure Sine Wave Inverter Charger, engineered for efficiency, durability, and control.
